  • INGERSOLL 2J1G050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 4 Flute Coolant 0.6299 Max DOC 1.574 OAL

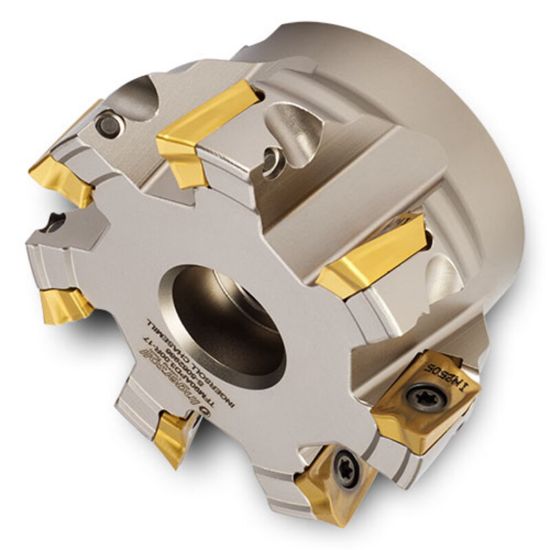

Picture of INGERSOLL 2J1G050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 4 Flute Coolant 0.6299 Max DOC 1.574 OAL

INGERSOLL 2J1G050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 4 Flute Coolant 0.6299 Max DOC 1.574 OAL

ANSI: 2J1G050R00

ISO: 2J1G050R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027841
Delivery date: 3-5 days
$470.40
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cut Dia Min 1.9690 50.01MM
Insert Size Ic 17
Tool Material Steel
Overall Len 1.5748 40.00MM
Depth Of Cut Max 0.6299
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 4.40°
Coolant Thru Yes
Insert Style AO
