  • INGERSOLL 2J1G040R00 Milling Cutter 90.0° 1.575 Shell Arbor 0.6300 3 Flute Coolant 0.6299 Max DOC 1.574 OAL

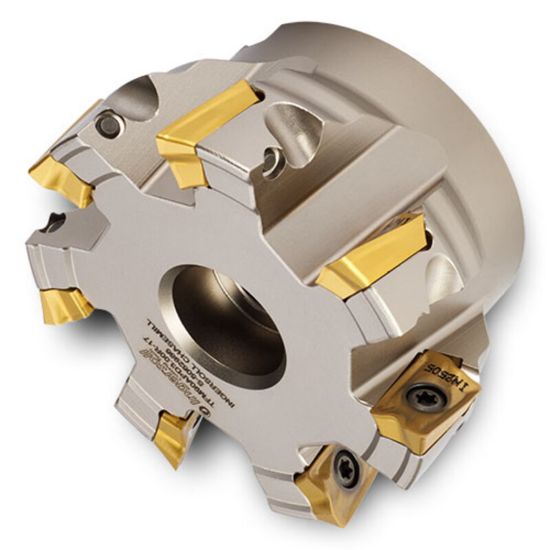

Picture of INGERSOLL 2J1G040R00 Milling Cutter 90.0° 1.575 Shell Arbor 0.6300 3 Flute Coolant 0.6299 Max DOC 1.574 OAL

INGERSOLL 2J1G040R00 Milling Cutter 90.0° 1.575 Shell Arbor 0.6300 3 Flute Coolant 0.6299 Max DOC 1.574 OAL

ANSI: 2J1G040R00

ISO: 2J1G040R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027840
Delivery date: 3-5 days
$416.27
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 17
Machine Side Connection Size 0.6299 16.00MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.6299
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Overall Len 1.5748 40.00MM
Cut Dia Min 1.5750 40.01MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Max Ramp Angle 5.00°
Coolant Thru Yes
