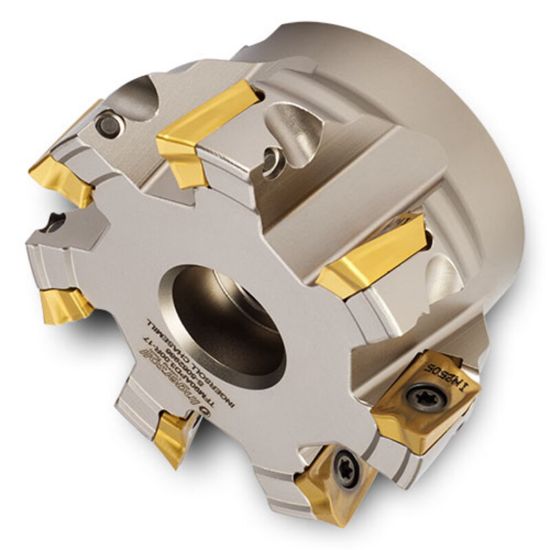

Picture of INGERSOLL 2J1G-80R01 Milling Cutter 90.0° 8.000 Shell Arbor 2.5000 12 Flute 0.63 Max DOC 2.370 OAL

INGERSOLL 2J1G-80R01 Milling Cutter 90.0° 8.000 Shell Arbor 2.5000 12 Flute 0.63 Max DOC 2.370 OAL

ANSI: 2J1G-80R01

ISO: 2J1G-80R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018676
Delivery date: 3-5 days
$1,764.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing, Finishing
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Shipping State Illinois
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 2.5000 63.50MM
Flutes/Inserts 12
Cutter Dia 8.0000 203.20MM
Tool Material Steel
Depth Of Cut Max 0.6300
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 8.0000 203.20MM
Overall Len 2.3700 60.20MM
Insert Size Ic 17
Cutting & Machining Properties
Max Ramp Angle 0.50°
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru No
Insert Style AO
