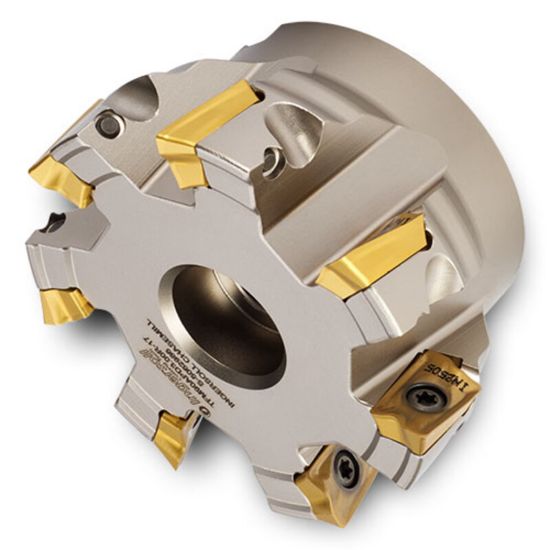

Picture of INGERSOLL 2J1G-60R02 Milling Cutter 90.0° 6.000 Shell Arbor 2.0000 8 Flute 0.63 Max DOC 2.000 OAL

INGERSOLL 2J1G-60R02 Milling Cutter 90.0° 6.000 Shell Arbor 2.0000 8 Flute 0.63 Max DOC 2.000 OAL

ANSI: 2J1G-60R02

ISO: 2J1G-60R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018674
Delivery date: 3-5 days
$1,306.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flutes/Inserts 8
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Insert Size Ic 17
Machine Side Connection Size 2.0000 50.80MM
Cut Dia Min 6.0000 152.40MM
Depth Of Cut Max 0.6300
Cutter Dia 6.0000 152.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Max Ramp Angle 1.00°
Coolant Thru No
