  • INGERSOLL 2J1G-40R04 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.63 Max DOC 2.375 OAL

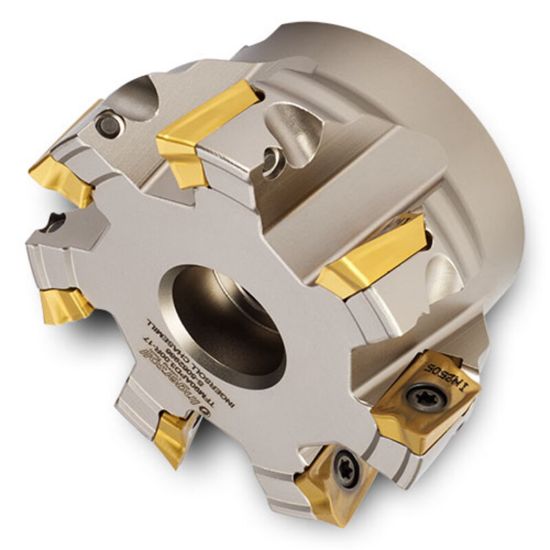

Picture of INGERSOLL 2J1G-40R04 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.63 Max DOC 2.375 OAL

INGERSOLL 2J1G-40R04 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.63 Max DOC 2.375 OAL

ANSI: 2J1G-40R04

ISO: 2J1G-40R04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2917448
Delivery date: 3-5 days
$930.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing, Finishing
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Insert Size Ic 17
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.6300
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Flutes/Inserts 6
Tool Material Steel
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.80°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
