  • INGERSOLL 2J1G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.63 Max DOC 1.750 OAL

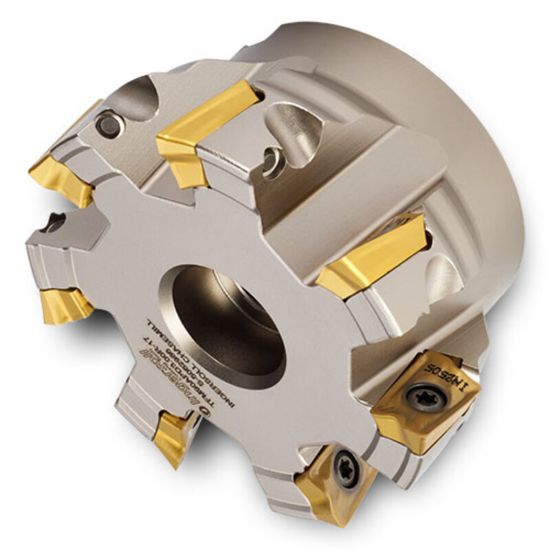

Picture of INGERSOLL 2J1G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.63 Max DOC 1.750 OAL

INGERSOLL 2J1G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.63 Max DOC 1.750 OAL

ANSI: 2J1G-30R01

ISO: 2J1G-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018671
Delivery date: 3-5 days
$797.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Insert Size Ic 17
Cutter Dia 3.0000 76.20MM
Flutes/Inserts 7
Machine Side Connection Size 1.0000 25.40MM
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.6300
Cutting & Machining Properties
Max Ramp Angle 2.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AO
