  • INGERSOLL 2J1G-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.63 Max DOC 1.570 OAL

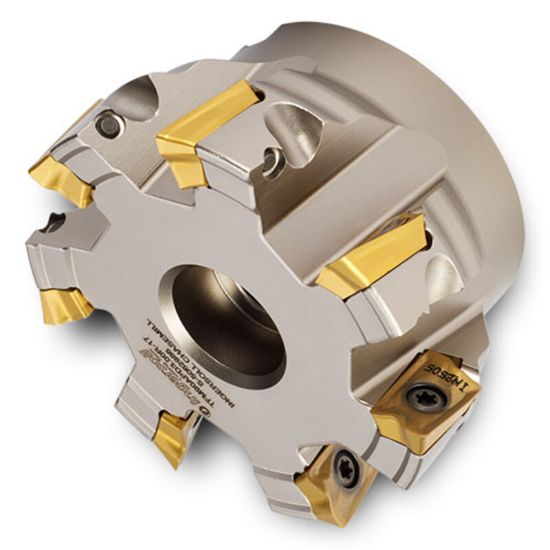

Picture of INGERSOLL 2J1G-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.63 Max DOC 1.570 OAL

INGERSOLL 2J1G-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.63 Max DOC 1.570 OAL

ANSI: 2J1G-25R01

ISO: 2J1G-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018666
Delivery date: 3-5 days
$611.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 6
Depth Of Cut Max 0.6300
Insert Size Ic 17
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Max Ramp Angle 2.70°
