  • INGERSOLL 2J1G-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.63 Max DOC 1.570 OAL

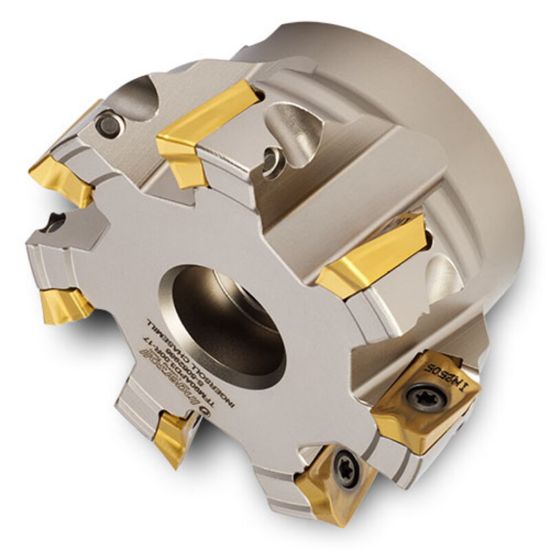

Picture of INGERSOLL 2J1G-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.63 Max DOC 1.570 OAL

INGERSOLL 2J1G-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.63 Max DOC 1.570 OAL

ANSI: 2J1G-20R01

ISO: 2J1G-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018669
Delivery date: 3-5 days
$470.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Insert Size Ic 17
Depth Of Cut Max 0.6300
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 4.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
