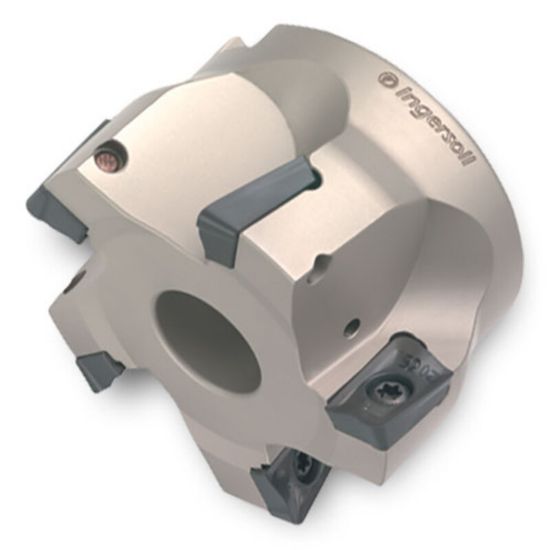

Picture of INGERSOLL 2J1E-50R02 Milling Cutter 90.0° 5.000 Shell Arbor 1.5000 9 Flute 0.66 Max DOC 2.000 OAL

INGERSOLL 2J1E-50R02 Milling Cutter 90.0° 5.000 Shell Arbor 1.5000 9 Flute 0.66 Max DOC 2.000 OAL

ANSI: 2J1E-50R02

ISO: 2J1E-50R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012942
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Depth Of Cut Max 0.6600
Tool Material Steel
Cut Dia Min 5.0000 127.00MM
Flutes/Inserts 9
Cutter Dia 5.0000 127.00MM
Cutting & Machining Properties
Coolant Thru No
Max Ramp Angle 0.90°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
