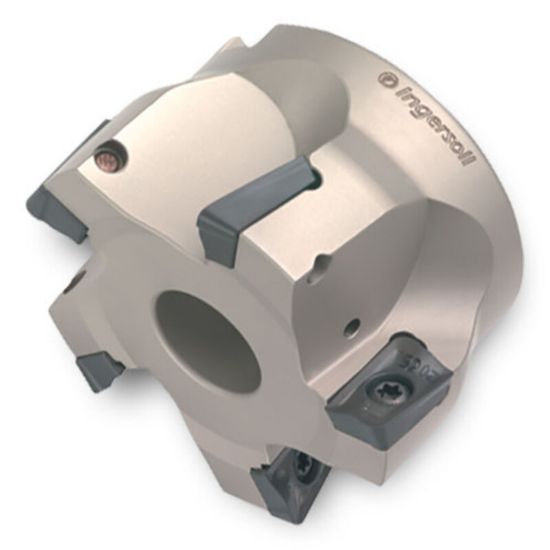

Picture of INGERSOLL 2J1E-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 8 Flute 0.66 Max DOC 2.000 OAL

INGERSOLL 2J1E-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 8 Flute 0.66 Max DOC 2.000 OAL

ANSI: 2J1E-40R02

ISO: 2J1E-40R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017403
Delivery date: 3-5 days
$942.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing, Finishing, Semi Finishing
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.6600
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Insert Size Ic 18
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 8
Cut Dia Min 4.0000 101.60MM
Cutter Dia 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 1.20°
Coolant Thru No
Insert Style AO
