  • INGERSOLL 2J1E-30R03 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 4 Flute Coolant 0.66 Max DOC 1.750 OAL

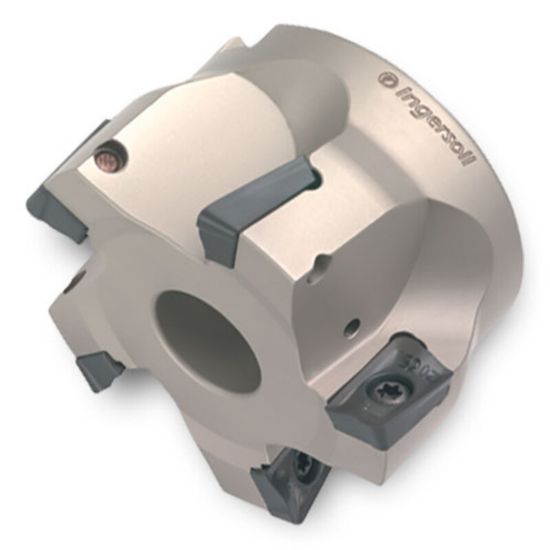

Picture of INGERSOLL 2J1E-30R03 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 4 Flute Coolant 0.66 Max DOC 1.750 OAL

INGERSOLL 2J1E-30R03 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 4 Flute Coolant 0.66 Max DOC 1.750 OAL

ANSI: 2J1E-30R03

ISO: 2J1E-30R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024025
Delivery date: 3-5 days
$692.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing, Finishing
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Overall Len 1.7500 44.45MM
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Depth Of Cut Max 0.6600
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Cutting & Machining Properties
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 1.80°
