  • INGERSOLL 2J1E-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.66 Max DOC 1.750 OAL

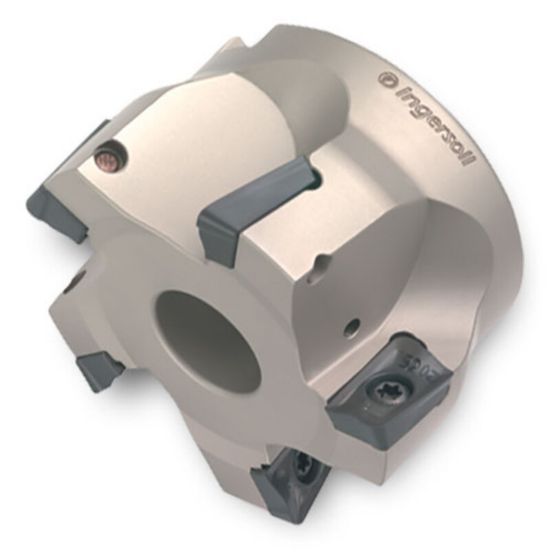

Picture of INGERSOLL 2J1E-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.66 Max DOC 1.750 OAL

INGERSOLL 2J1E-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.66 Max DOC 1.750 OAL

ANSI: 2J1E-30R01

ISO: 2J1E-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017402
Delivery date: 3-5 days
$741.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Insert/Tool Tool
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Package Size 1
Shipping State Illinois
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 5
Overall Len 1.7500 44.45MM
Cutter Dia 3.0000 76.20MM
Depth Of Cut Max 0.6600
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 1.80°
Insert Style AO
