  • INGERSOLL 2J1E-25R02 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.66 Max DOC 1.570 OAL

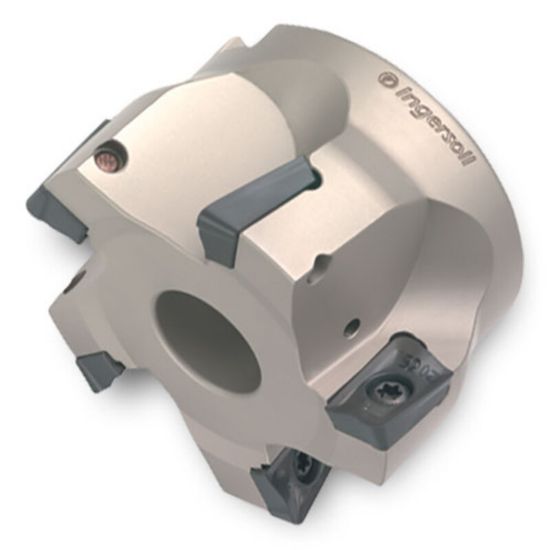

Picture of INGERSOLL 2J1E-25R02 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.66 Max DOC 1.570 OAL

INGERSOLL 2J1E-25R02 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.66 Max DOC 1.570 OAL

ANSI: 2J1E-25R02

ISO: 2J1E-25R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017401
Delivery date: 3-5 days
$660.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Slot Milling, Pocket Milling, Ramp Milling, Side Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Flutes/Inserts 6
Depth Of Cut Max 0.6600
Tool Material Steel
Overall Len 1.5700 39.88MM
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Max Ramp Angle 2.60°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
