  • INGERSOLL 2J1E-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 3 Flute Coolant 0.66 Max DOC 1.570 OAL

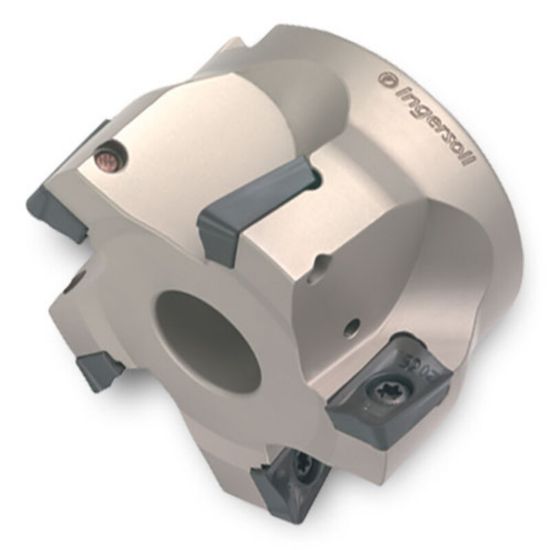

Picture of INGERSOLL 2J1E-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 3 Flute Coolant 0.66 Max DOC 1.570 OAL

INGERSOLL 2J1E-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 3 Flute Coolant 0.66 Max DOC 1.570 OAL

ANSI: 2J1E-20R01

ISO: 2J1E-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017398
Delivery date: 3-5 days
$471.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Flutes/Inserts 3
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Depth Of Cut Max 0.6600
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 3.00°
Insert Shape/Cutter Pocket Shape Parallelogram
