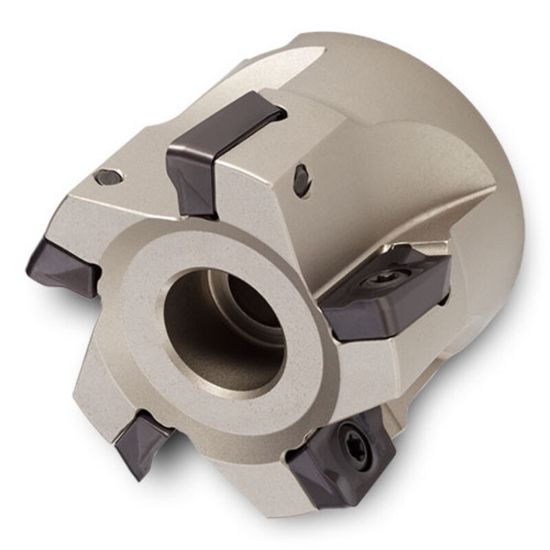

Picture of INGERSOLL 2J1B-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute 0.6 Max DOC 1.570 OAL

INGERSOLL 2J1B-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute 0.6 Max DOC 1.570 OAL

ANSI: 2J1B-25R01

ISO: 2J1B-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001602
Delivery date: 3-5 days
$629.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Insert Size Ic 16
Depth Of Cut Max 0.6000
Flutes/Inserts 6
Tool Material Steel
Overall Len 1.5700 39.88MM
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru No
