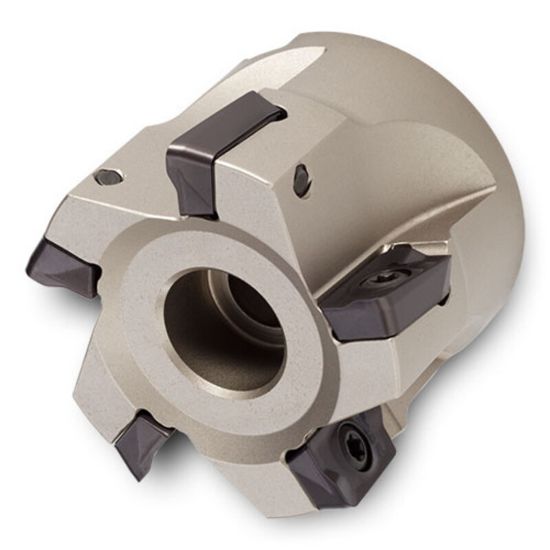

Picture of INGERSOLL 2J1B-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute 0.6 Max DOC 1.570 OAL

INGERSOLL 2J1B-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute 0.6 Max DOC 1.570 OAL

ANSI: 2J1B-20R01

ISO: 2J1B-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001601
Delivery date: 3-5 days
$512.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Package Size 1
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.6000
Cut Dia Min 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru No
Insert Style AP
