  • INGERSOLL 2BW3Z-1504581R01 Milling Cutter 1.500 Cylindrical 1.2500 2 Flute Coolant 0.75 Max DOC 6.750 OAL

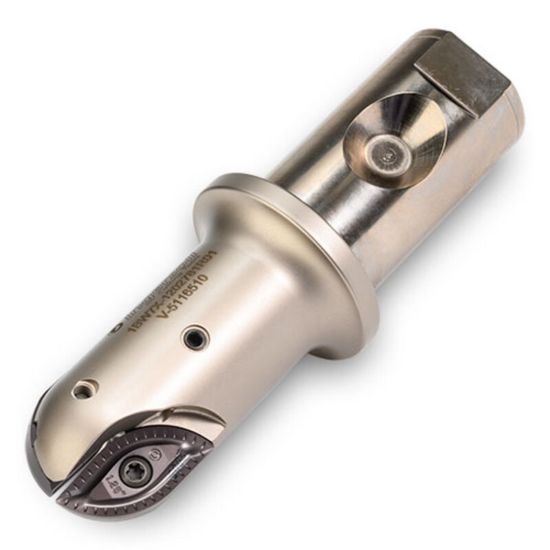

Picture of INGERSOLL 2BW3Z-1504581R01 Milling Cutter 1.500 Cylindrical 1.2500 2 Flute Coolant 0.75 Max DOC 6.750 OAL

INGERSOLL 2BW3Z-1504581R01 Milling Cutter 1.500 Cylindrical 1.2500 2 Flute Coolant 0.75 Max DOC 6.750 OAL

ANSI: 2BW3Z-1504581R01

ISO: 2BW3Z-1504581R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030497
Delivery date: 3-5 days
$851.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Copy Milling, Profile Milling
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.7500
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.7500 171.45MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Cutting & Machining Properties
Insert Style DG,ND
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
