  • INGERSOLL 25J3P-30050D4R10-R Milling Cutter 90.0°, Corn Cob 3.000 Cylindrical 1.2500 5 Flute Coolant 4.08 Max DOC 5.000 OAL

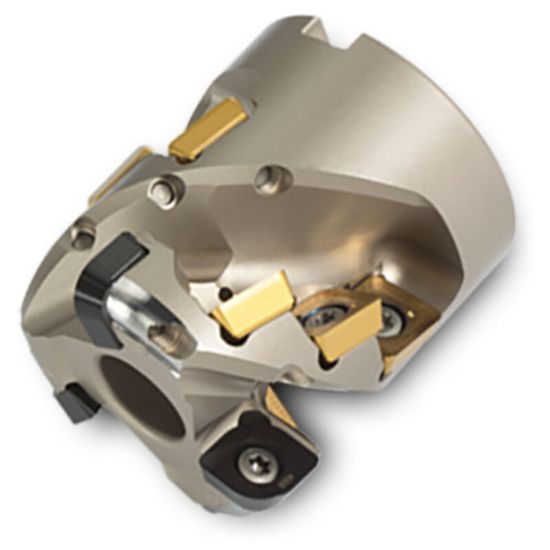

Picture of INGERSOLL 25J3P-30050D4R10-R Milling Cutter 90.0°, Corn Cob 3.000 Cylindrical 1.2500 5 Flute Coolant 4.08 Max DOC 5.000 OAL

INGERSOLL 25J3P-30050D4R10-R Milling Cutter 90.0°, Corn Cob 3.000 Cylindrical 1.2500 5 Flute Coolant 4.08 Max DOC 5.000 OAL

ANSI: 25J3P-30050D4R10-R

ISO: 25J3P-30050D4R10-R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2907144
Delivery date: 3-5 days
$2,277.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing
Made In USA No
Dimensional Specifications
Depth Of Cut Max 4.0800
Machine Side Connection Type Cylindrical
Overall Len 5.0000 127.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 3.0000 76.20MM
Insert Size Ic 13
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 5
Cut Dia Min 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Insert Style SD
