  • INGERSOLL 25J3P-25040D3R01-R Milling Cutter 90.0°, Corn Cob 2.500 Cylindrical 1.0000 4 Flute Coolant 3 Max DOC 4.000 OAL

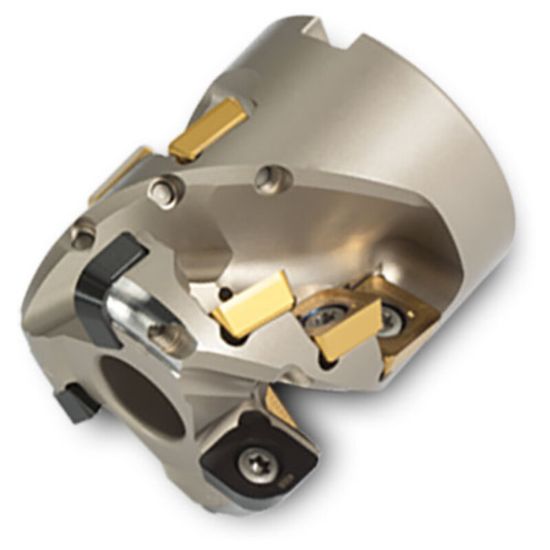

Picture of INGERSOLL 25J3P-25040D3R01-R Milling Cutter 90.0°, Corn Cob 2.500 Cylindrical 1.0000 4 Flute Coolant 3 Max DOC 4.000 OAL

INGERSOLL 25J3P-25040D3R01-R Milling Cutter 90.0°, Corn Cob 2.500 Cylindrical 1.0000 4 Flute Coolant 3 Max DOC 4.000 OAL

ANSI: 25J3P-25040D3R01-R

ISO: 25J3P-25040D3R01-R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2907146
Delivery date: 3-5 days
$1,698.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Insert/Tool Tool
Application Side Milling, Long Edge Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 3.0000
Flutes/Inserts 4
Cutter Dia 2.5000 63.50MM - 2-1/2
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 13
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
