  • INGERSOLL 25J3P-20035D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute Coolant 2.6 Max DOC 3.500 OAL

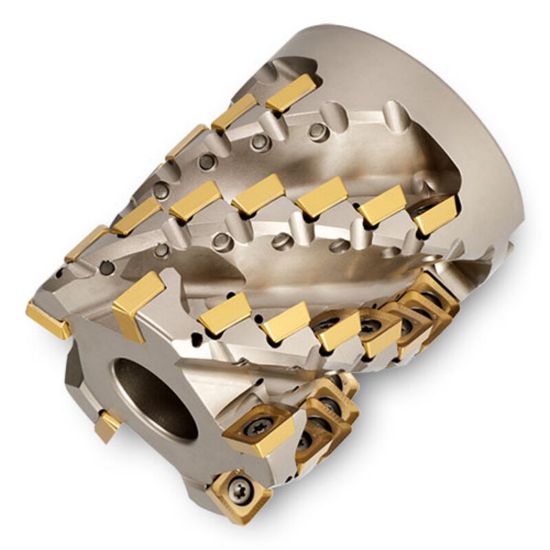

Picture of INGERSOLL 25J3P-20035D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute Coolant 2.6 Max DOC 3.500 OAL

INGERSOLL 25J3P-20035D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute Coolant 2.6 Max DOC 3.500 OAL

ANSI: 25J3P-20035D1R01

ISO: 25J3P-20035D1R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2906698
Delivery date: 3-5 days
$1,353.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Application Roughing
Package Size 1
Insert Type Positive
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 2.6000
Insert Size Ic 13
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
