  • INGERSOLL 25J3P-20030D1R01-R Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute Coolant 1.9 Max DOC 3.000 OAL

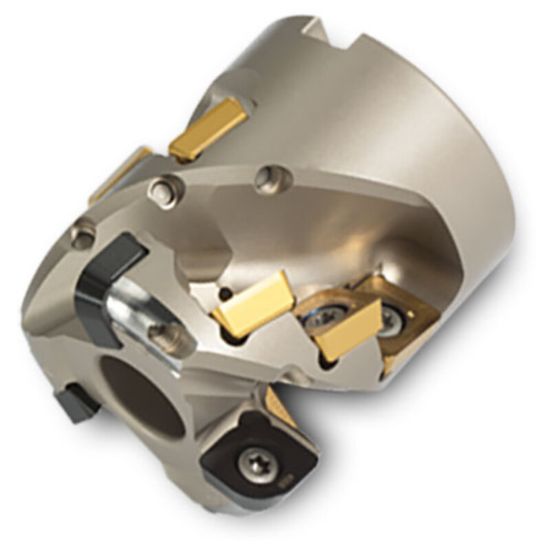

Picture of INGERSOLL 25J3P-20030D1R01-R Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute Coolant 1.9 Max DOC 3.000 OAL

INGERSOLL 25J3P-20030D1R01-R Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute Coolant 1.9 Max DOC 3.000 OAL

ANSI: 25J3P-20030D1R01-R

ISO: 25J3P-20030D1R01-R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2907139
Delivery date: 3-5 days
$1,260.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Insert Application Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.0000 76.20MM
Depth Of Cut Max 1.9000
Cut Dia Min 2.0000 50.80MM
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Insert Size Ic 13
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
