  • INGERSOLL 25J3P-20023D1R02-R Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.53 Max DOC 2.350 OAL

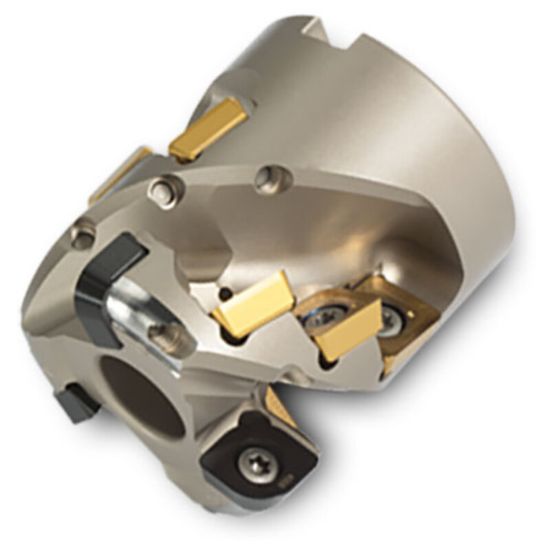

Picture of INGERSOLL 25J3P-20023D1R02-R Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.53 Max DOC 2.350 OAL

INGERSOLL 25J3P-20023D1R02-R Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.53 Max DOC 2.350 OAL

ANSI: 25J3P-20023D1R02-R

ISO: 25J3P-20023D1R02-R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2907140
Delivery date: 3-5 days
$1,288.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert Type Positive
Package Size 1
Insert Application Roughing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Overall Len 2.3500 59.69MM
Insert Size Ic 13
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Depth Of Cut Max 1.5300
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style SD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
