  • INGERSOLL 25J3P-20023D1R02 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.53 Max DOC 2.350 OAL

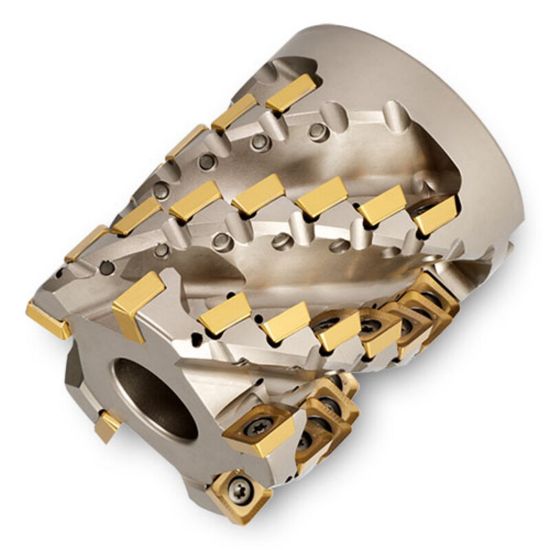

Picture of INGERSOLL 25J3P-20023D1R02 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.53 Max DOC 2.350 OAL

INGERSOLL 25J3P-20023D1R02 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.53 Max DOC 2.350 OAL

ANSI: 25J3P-20023D1R02

ISO: 25J3P-20023D1R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2905917
Delivery date: 3-5 days
$1,288.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Package Size 1
Insert Application Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 4
Machine Side Connection Type Weldon
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 1.5300
Cut Dia Min 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 13
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 2.3500 59.69MM
Cutting & Machining Properties
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
