  • INGERSOLL 25J3G-1502681R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 3 Flute 2.13 Max DOC 4.850 OAL

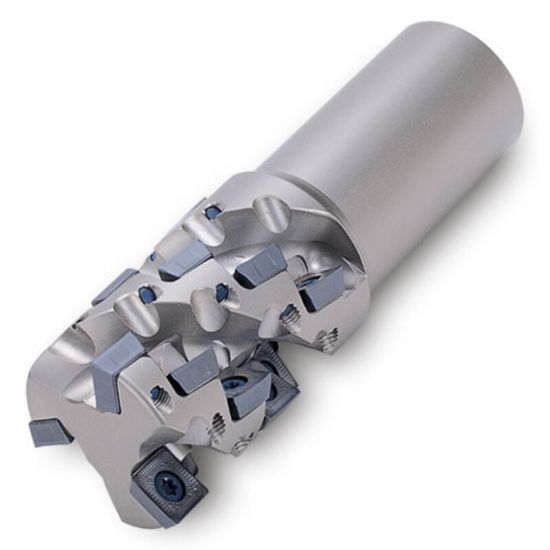

Picture of INGERSOLL 25J3G-1502681R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 3 Flute 2.13 Max DOC 4.850 OAL

INGERSOLL 25J3G-1502681R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 3 Flute 2.13 Max DOC 4.850 OAL

ANSI: 25J3G-1502681R01

ISO: 25J3G-1502681R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3007805
Delivery date: 3-5 days
$1,166.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Side Milling, Long Edge Milling
Insert Type Positive
Insert Application Roughing
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 4.8500 123.19MM
Depth Of Cut Max 2.1300
Insert Size Ic 11
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SH
Coolant Thru No
