  • INGERSOLL 22J7Q-1502681R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 2 Flute 2.1 Max DOC 4.850 OAL

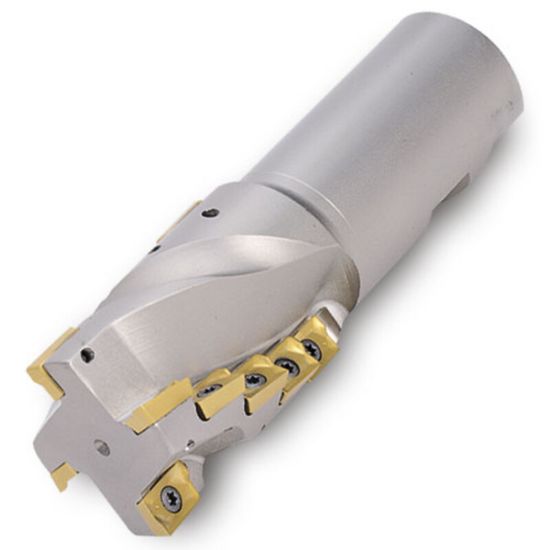

Picture of INGERSOLL 22J7Q-1502681R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 2 Flute 2.1 Max DOC 4.850 OAL

INGERSOLL 22J7Q-1502681R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 2 Flute 2.1 Max DOC 4.850 OAL

ANSI: 22J7Q-1502681R01

ISO: 22J7Q-1502681R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3003116
Delivery date: 3-5 days
$931.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Insert/Tool Tool
Application Side Milling, Long Edge Milling
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12
Flutes/Inserts 2
Depth Of Cut Max 2.1000
Overall Len 4.8500 123.19MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style AP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
