  • INGERSOLL 22J3X-20022D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute 1.75 Max DOC 2.200 OAL

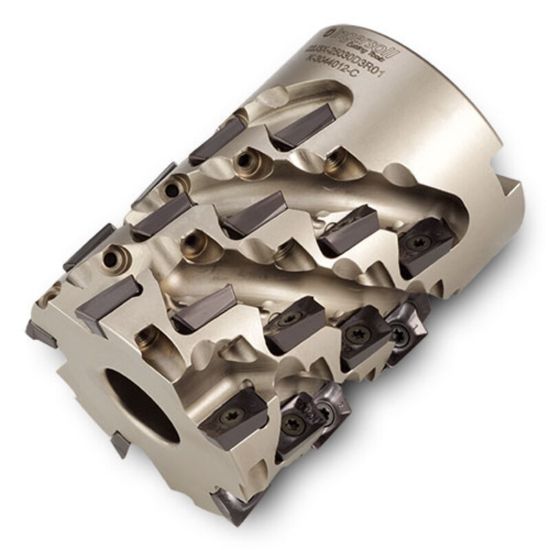

Picture of INGERSOLL 22J3X-20022D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute 1.75 Max DOC 2.200 OAL

INGERSOLL 22J3X-20022D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute 1.75 Max DOC 2.200 OAL

ANSI: 22J3X-20022D1R01

ISO: 22J3X-20022D1R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025416
Delivery date: 3-5 days
$1,036.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert Type Positive
Package Size 1
Insert Application Roughing
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Cut Dia Min 2.0000 50.80MM
Flutes/Inserts 3
Overall Len 2.2000 55.88MM
Depth Of Cut Max 1.7500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 12
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Style AO
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
