  • INGERSOLL 22J3X-1502881R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 3 Flute Coolant 2.2 Max DOC 5.050 OAL

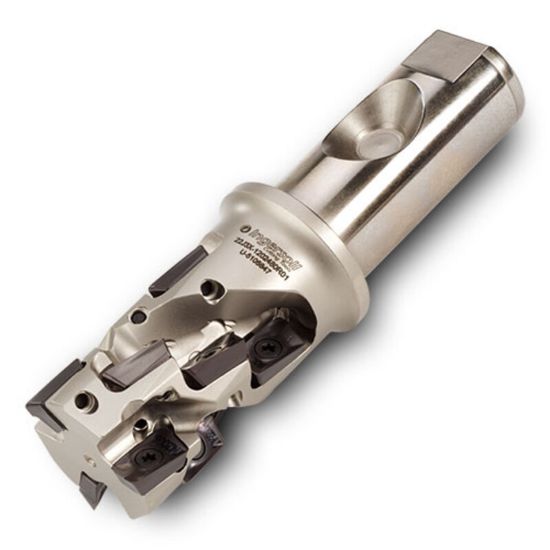

Picture of INGERSOLL 22J3X-1502881R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 3 Flute Coolant 2.2 Max DOC 5.050 OAL

INGERSOLL 22J3X-1502881R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 3 Flute Coolant 2.2 Max DOC 5.050 OAL

ANSI: 22J3X-1502881R01

ISO: 22J3X-1502881R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024889
Delivery date: 3-5 days
$1,054.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert/Tool Tool
Insert Application Roughing
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.0500 128.27MM
Flutes/Inserts 3
Tool Material Steel
Depth Of Cut Max 2.2000
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Insert Size Ic 12
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
