  • INGERSOLL 22J3R050046F2R00 Milling Cutter 90.0°, Corn Cob 1.967 Cylindrical 1.0630 4 Flute Coolant 1.811 Max DOC 2.755 OAL

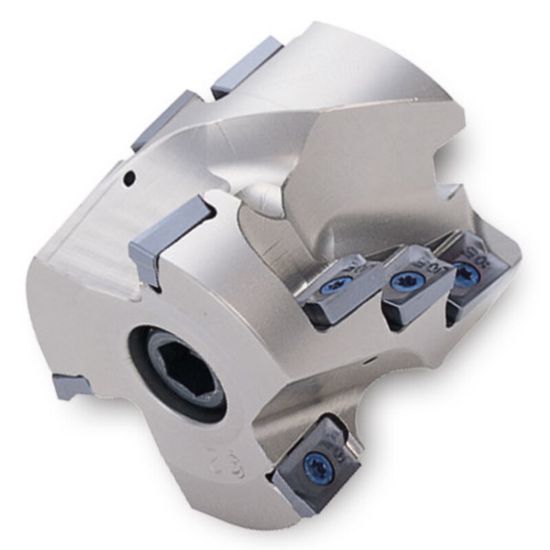

Picture of INGERSOLL 22J3R050046F2R00 Milling Cutter 90.0°, Corn Cob 1.967 Cylindrical 1.0630 4 Flute Coolant 1.811 Max DOC 2.755 OAL

INGERSOLL 22J3R050046F2R00 Milling Cutter 90.0°, Corn Cob 1.967 Cylindrical 1.0630 4 Flute Coolant 1.811 Max DOC 2.755 OAL

ANSI: 22J3R050046F2R00

ISO: 22J3R050046F2R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3074960
Delivery date: 3-5 days
$1,353.33
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 1.0630 27.00MM
Flutes/Inserts 4
Tool Material Steel
Cut Dia Min 1.9690 50.01MM
Overall Len 2.7560 70.00MM
Depth Of Cut Max 1.8110
Cutter Dia 1.9670 49.96MM
Machine Side Connection Size 1.0630 27.00MM
Machine Side Connection Type Cylindrical
Insert Size Ic 13
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style BO
Max Ramp Angle 2.10°
