  • INGERSOLL 22J3R050046F1R00 Milling Cutter 90.0°, Corn Cob 1.967 Cylindrical 0.8661 4 Flute Coolant 1.811 Max DOC 2.755 OAL

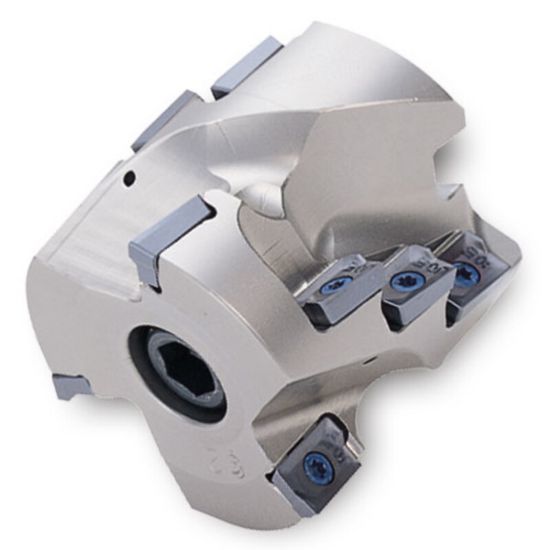

Picture of INGERSOLL 22J3R050046F1R00 Milling Cutter 90.0°, Corn Cob 1.967 Cylindrical 0.8661 4 Flute Coolant 1.811 Max DOC 2.755 OAL

INGERSOLL 22J3R050046F1R00 Milling Cutter 90.0°, Corn Cob 1.967 Cylindrical 0.8661 4 Flute Coolant 1.811 Max DOC 2.755 OAL

ANSI: 22J3R050046F1R00

ISO: 22J3R050046F1R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3060288
Delivery date: 3-5 days
$1,596.00
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Application Side Milling, Long Edge Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 1.9670 49.96MM
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Shank/Pilot Dia 0.8661 22.00MM
Overall Len 2.7560 70.00MM
Depth Of Cut Max 1.8110
Tool Material Steel
Cut Dia Min 1.9690 50.01MM
Machine Side Connection Type Cylindrical
Insert Size Ic 13
Cutting & Machining Properties
Insert Style BO
Max Ramp Angle 2.10°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
