  • INGERSOLL 22J3P032034W6R00 Milling Cutter 90.0°, Corn Cob 1.260 Cylindrical 1.2598 3 Flute Coolant 1.2598 Max DOC 4.330 OAL

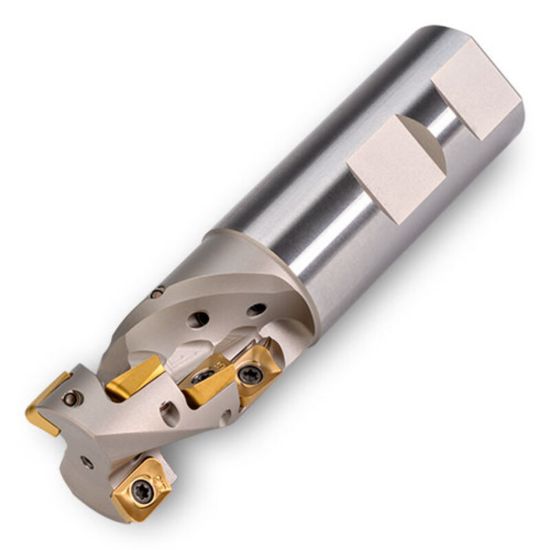

Picture of INGERSOLL 22J3P032034W6R00 Milling Cutter 90.0°, Corn Cob 1.260 Cylindrical 1.2598 3 Flute Coolant 1.2598 Max DOC 4.330 OAL

INGERSOLL 22J3P032034W6R00 Milling Cutter 90.0°, Corn Cob 1.260 Cylindrical 1.2598 3 Flute Coolant 1.2598 Max DOC 4.330 OAL

ANSI: 22J3P032034W6R00

ISO: 22J3P032034W6R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027511
Delivery date: 3-5 days
$1,045.33
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Application Side Milling, Long Edge Milling
Package Size 1
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Cutter Dia 1.2600 32.00MM
Flutes/Inserts 3
Depth Of Cut Max 1.2598
Insert Size Ic 9
Shank/Pilot Dia 1.2598 32.00MM
Overall Len 4.3307 110.00MM
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Cutting & Machining Properties
Max Ramp Angle 2.80°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
