  • INGERSOLL 22J3P025026W5R00 Milling Cutter 90.0°, Corn Cob 0.984 Cylindrical 0.9843 2 Flute Coolant 0.9843 Max DOC 3.937 OAL

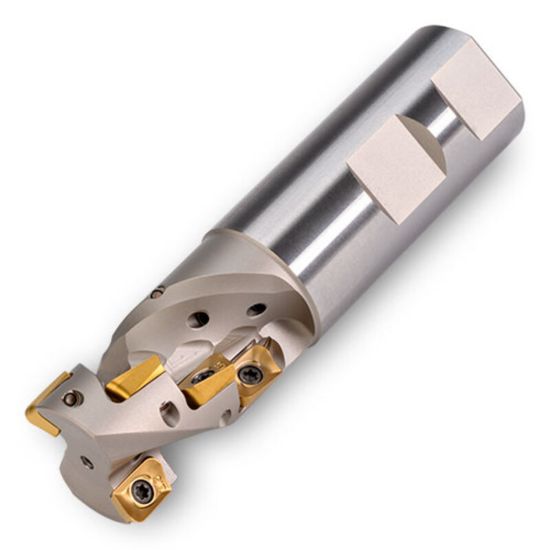

Picture of INGERSOLL 22J3P025026W5R00 Milling Cutter 90.0°, Corn Cob 0.984 Cylindrical 0.9843 2 Flute Coolant 0.9843 Max DOC 3.937 OAL

INGERSOLL 22J3P025026W5R00 Milling Cutter 90.0°, Corn Cob 0.984 Cylindrical 0.9843 2 Flute Coolant 0.9843 Max DOC 3.937 OAL

ANSI: 22J3P025026W5R00

ISO: 22J3P025026W5R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027510
Delivery date: 3-5 days
$833.47
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Insert Application Roughing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Cylindrical
Insert Size Ic 9
Depth Of Cut Max 0.9843
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Cutter Dia 0.9840 24.99MM
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 4.40°
Insert Style BO
