  • INGERSOLL 22J3G100088F4R00 Milling Cutter 90.0°, Corn Cob 3.937 Cylindrical 1.5748 6 Flute Coolant 3.4646 Max DOC 4.330 OAL

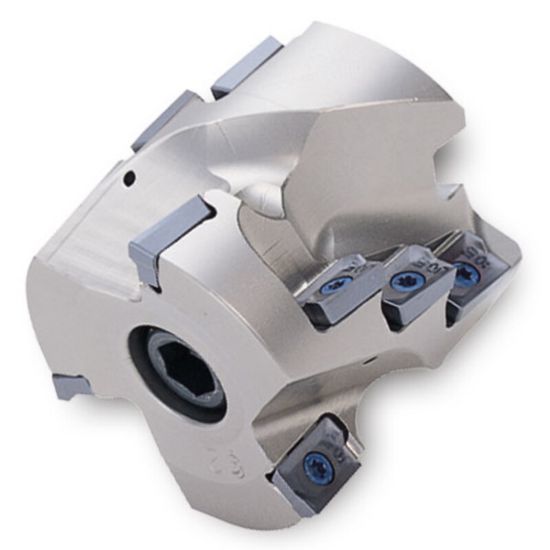

Picture of INGERSOLL 22J3G100088F4R00 Milling Cutter 90.0°, Corn Cob 3.937 Cylindrical 1.5748 6 Flute Coolant 3.4646 Max DOC 4.330 OAL

INGERSOLL 22J3G100088F4R00 Milling Cutter 90.0°, Corn Cob 3.937 Cylindrical 1.5748 6 Flute Coolant 3.4646 Max DOC 4.330 OAL

ANSI: 22J3G100088F4R00

ISO: 22J3G100088F4R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027831
Delivery date: 3-5 days
$2,781.33
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Application Roughing
Application Long Edge Milling, Side Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 3.9370 100.00MM
Depth Of Cut Max 3.4646
Shank/Pilot Dia 1.5748 40.00MM
Overall Len 4.3307 110.00MM
Insert Size Ic 17
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.5748 40.00MM
Flutes/Inserts 6
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.80°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
