  • INGERSOLL 22J3G063059F2R01 Milling Cutter 90.0°, Corn Cob 2.480 Cylindrical 1.0630 4 Flute Coolant 2.3228 Max DOC 2.952 OAL

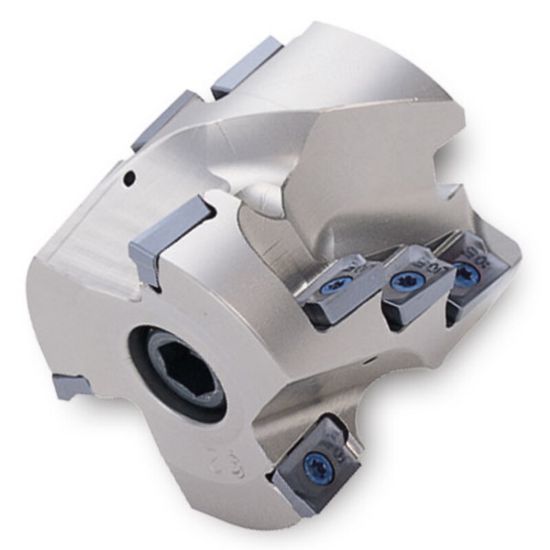

Picture of INGERSOLL 22J3G063059F2R01 Milling Cutter 90.0°, Corn Cob 2.480 Cylindrical 1.0630 4 Flute Coolant 2.3228 Max DOC 2.952 OAL

INGERSOLL 22J3G063059F2R01 Milling Cutter 90.0°, Corn Cob 2.480 Cylindrical 1.0630 4 Flute Coolant 2.3228 Max DOC 2.952 OAL

ANSI: 22J3G063059F2R01

ISO: 22J3G063059F2R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027828
Delivery date: 3-5 days
$1,661.33
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing
Made In USA No
Insert Type Positive
Dimensional Specifications
Cutter Dia 2.4800 62.99MM
Shank/Pilot Dia 1.0630 27.00MM
Flutes/Inserts 4
Depth Of Cut Max 2.3228
Tool Material Steel
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0630 27.00MM
Cut Dia Min 2.4800 62.99MM
Insert Size Ic 17
Overall Len 2.9528 75.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 3.20°
