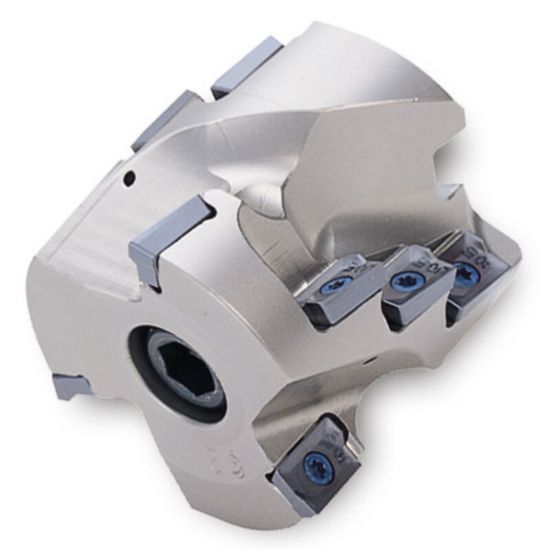

Picture of INGERSOLL 22J3G063059F2R00 Milling Cutter 90.0°, Corn Cob 2.480 Cylindrical 1.0630 3 Flute Coolant 2.3228 Max DOC 2.952 OAL

INGERSOLL 22J3G063059F2R00 Milling Cutter 90.0°, Corn Cob 2.480 Cylindrical 1.0630 3 Flute Coolant 2.3228 Max DOC 2.952 OAL

ANSI: 22J3G063059F2R00

ISO: 22J3G063059F2R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027827
Delivery date: 3-5 days
$1,474.67
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Application Roughing
Application Long Edge Milling, Side Milling
Package Size 1
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 2.3228
Tool Material Steel
Cut Dia Min 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0630 27.00MM
Shank/Pilot Dia 1.0630 27.00MM
Cutter Dia 2.4800 62.99MM
Overall Len 2.9528 75.00MM
Insert Size Ic 17
Flutes/Inserts 3
Cutting & Machining Properties
Max Ramp Angle 3.20°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
