  • INGERSOLL 22J3G-30040D4R02 Milling Cutter 90.0°, Corn Cob 3.000 Cylindrical 1.2500 6 Flute Coolant 3.35 Max DOC 4.000 OAL

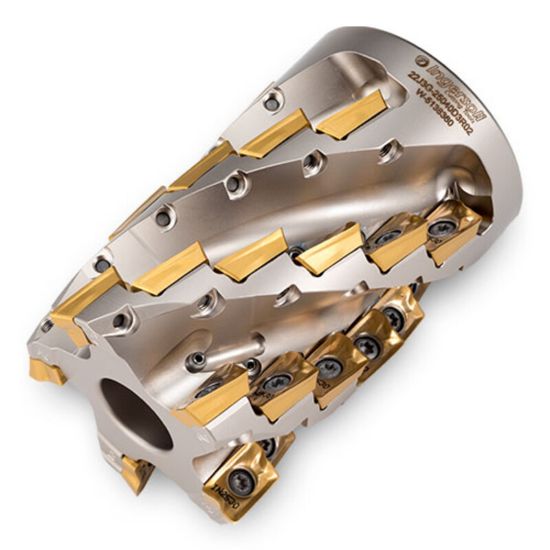

Picture of INGERSOLL 22J3G-30040D4R02 Milling Cutter 90.0°, Corn Cob 3.000 Cylindrical 1.2500 6 Flute Coolant 3.35 Max DOC 4.000 OAL

INGERSOLL 22J3G-30040D4R02 Milling Cutter 90.0°, Corn Cob 3.000 Cylindrical 1.2500 6 Flute Coolant 3.35 Max DOC 4.000 OAL

ANSI: 22J3G-30040D4R02

ISO: 22J3G-30040D4R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2922506
Delivery date: 3-5 days
$2,165.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Side Milling, Long Edge Milling
Insert Type Positive
Insert Application Roughing
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 3.3500
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Cylindrical
Overall Len 4.0000 101.60MM
Flutes/Inserts 6
Cutter Dia 3.0000 76.20MM
Insert Size Ic 17
Cut Dia Min 3.0000 76.20MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Max Ramp Angle 2.00°
Coolant Thru Yes
