  • INGERSOLL 22J3G-25030D3R02 Milling Cutter 90.0°, Corn Cob 2.500 Cylindrical 1.0000 5 Flute Coolant 2.27 Max DOC 3.000 OAL

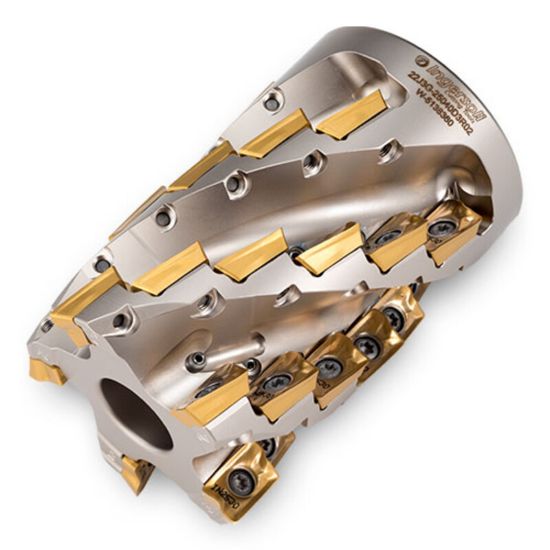

Picture of INGERSOLL 22J3G-25030D3R02 Milling Cutter 90.0°, Corn Cob 2.500 Cylindrical 1.0000 5 Flute Coolant 2.27 Max DOC 3.000 OAL

INGERSOLL 22J3G-25030D3R02 Milling Cutter 90.0°, Corn Cob 2.500 Cylindrical 1.0000 5 Flute Coolant 2.27 Max DOC 3.000 OAL

ANSI: 22J3G-25030D3R02

ISO: 22J3G-25030D3R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2922317
Delivery date: 3-5 days
$1,437.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Application Side Milling, Long Edge Milling
Insert Application Roughing
Package Size 1
Dimensional Specifications
Depth Of Cut Max 2.2700
Overall Len 3.0000 76.20MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Flutes/Inserts 5
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 17
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 3.00°
