  • INGERSOLL 22J3G-20041D3R02 Milling Cutter 90.0°, Corn Cob 2.000 Cylindrical 1.0000 4 Flute Coolant 2.8 Max DOC 4.170 OAL

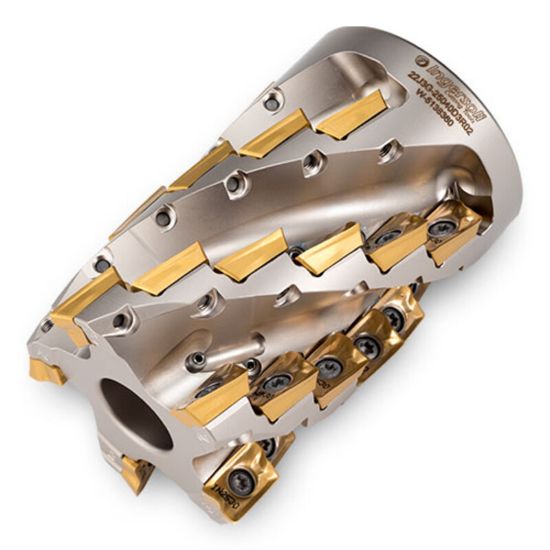

Picture of INGERSOLL 22J3G-20041D3R02 Milling Cutter 90.0°, Corn Cob 2.000 Cylindrical 1.0000 4 Flute Coolant 2.8 Max DOC 4.170 OAL

INGERSOLL 22J3G-20041D3R02 Milling Cutter 90.0°, Corn Cob 2.000 Cylindrical 1.0000 4 Flute Coolant 2.8 Max DOC 4.170 OAL

ANSI: 22J3G-20041D3R02

ISO: 22J3G-20041D3R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2922282
Delivery date: 3-5 days
$1,297.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Insert Application Roughing
Dimensional Specifications
Depth Of Cut Max 2.8000
Tool Material Steel
Cut Dia Min 2.0000 50.80MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 17
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Overall Len 4.1700 105.92MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 4.00°
Insert Style AO
