  • INGERSOLL 22J3G-2002782R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 2.0000 4 Flute Coolant 2.25 Max DOC 6.000 OAL

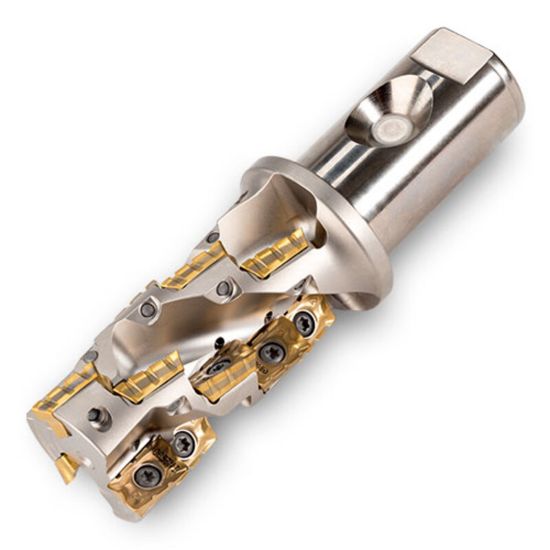

Picture of INGERSOLL 22J3G-2002782R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 2.0000 4 Flute Coolant 2.25 Max DOC 6.000 OAL

INGERSOLL 22J3G-2002782R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 2.0000 4 Flute Coolant 2.25 Max DOC 6.000 OAL

ANSI: 22J3G-2002782R01

ISO: 22J3G-2002782R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2922446
Delivery date: 3-5 days
$1,390.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Insert/Tool Tool
Application Side Milling, Long Edge Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 4
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Insert Size Ic 17
Machine Side Connection Size 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Tool Material Steel
Depth Of Cut Max 2.2500
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 4.00°
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
