  • INGERSOLL 22J3G-1502781R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 3 Flute Coolant 2.27 Max DOC 5.000 OAL

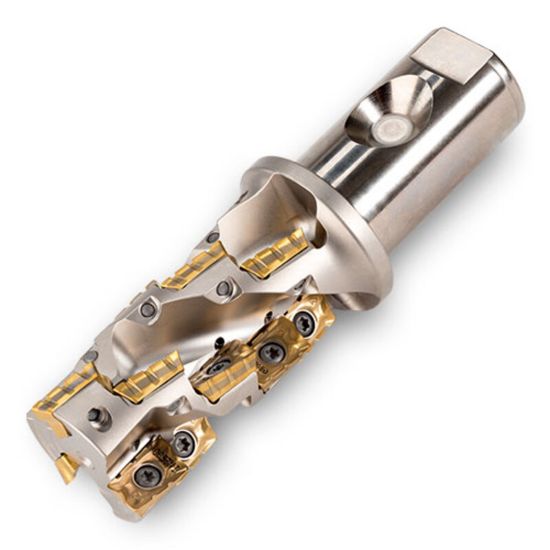

Picture of INGERSOLL 22J3G-1502781R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 3 Flute Coolant 2.27 Max DOC 5.000 OAL

INGERSOLL 22J3G-1502781R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 3 Flute Coolant 2.27 Max DOC 5.000 OAL

ANSI: 22J3G-1502781R01

ISO: 22J3G-1502781R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2922550
Delivery date: 3-5 days
$1,036.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Long Edge Milling, Side Milling
Package Size 1
Insert Type Positive
Insert Application Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Depth Of Cut Max 2.2700
Overall Len 5.0000 127.00MM
Insert Size Ic 17
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Max Ramp Angle 5.00°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
