  • INGERSOLL 22J3E-40044D5R01 Milling Cutter 90.0°, Corn Cob 4.000 Cylindrical 1.5000 5 Flute 3.78 Max DOC 4.470 OAL

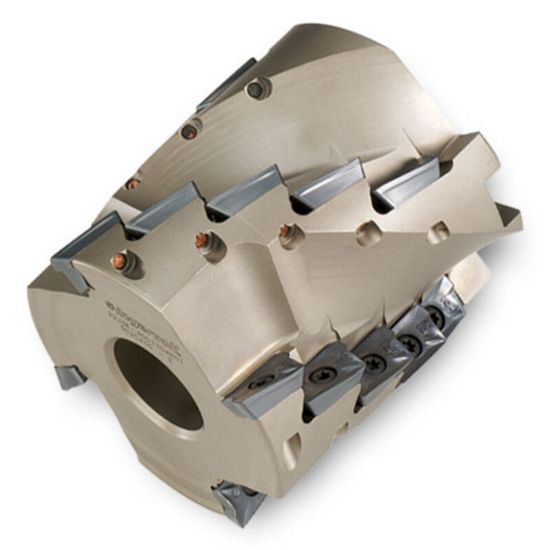

Picture of INGERSOLL 22J3E-40044D5R01 Milling Cutter 90.0°, Corn Cob 4.000 Cylindrical 1.5000 5 Flute 3.78 Max DOC 4.470 OAL

INGERSOLL 22J3E-40044D5R01 Milling Cutter 90.0°, Corn Cob 4.000 Cylindrical 1.5000 5 Flute 3.78 Max DOC 4.470 OAL

ANSI: 22J3E-40044D5R01

ISO: 22J3E-40044D5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040637
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Long Edge Milling, Side Milling
Package Size 1
Insert Type Positive
Insert Application Roughing
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 4.4700 113.54MM
Flutes/Inserts 5
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 3.7800
Cutter Dia 4.0000 101.60MM
Machine Side Connection Type Cylindrical
Cut Dia Min 4.0000 101.60MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 18
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
