  • INGERSOLL 22J3E-2506048R01 Milling Cutter 90.0°, Corn Cob 2.500 CAT50 4 Flute Coolant 4.42 Max DOC 10.00 OAL

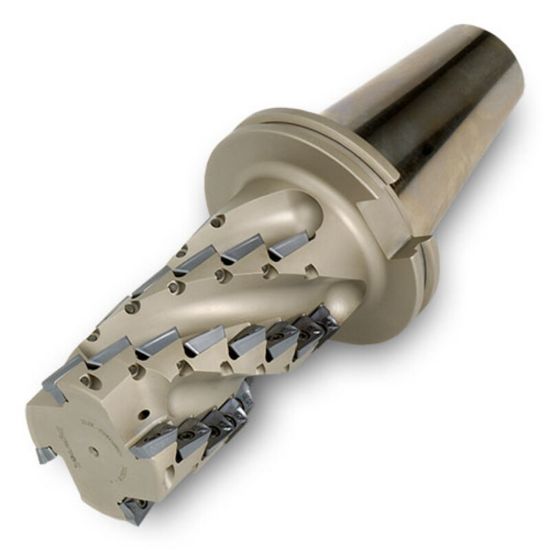

Picture of INGERSOLL 22J3E-2506048R01 Milling Cutter 90.0°, Corn Cob 2.500 CAT50 4 Flute Coolant 4.42 Max DOC 10.00 OAL

INGERSOLL 22J3E-2506048R01 Milling Cutter 90.0°, Corn Cob 2.500 CAT50 4 Flute Coolant 4.42 Max DOC 10.00 OAL

ANSI: 22J3E-2506048R01

ISO: 22J3E-2506048R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040634
Delivery date: 3-5 days
$2,398.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Long Edge Milling, Side Milling
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 4
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Type CAT
Machine Side Connection Size 1.9685 50.00MM
Overall Len 10.0000 254.00MM
Insert Size Ic 18
Depth Of Cut Max 4.4200
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AO
