  • INGERSOLL 22J3E-25030D3R01 Milling Cutter 90.0°, Corn Cob 2.500 Cylindrical 1.0000 4 Flute 2.26 Max DOC 3.060 OAL

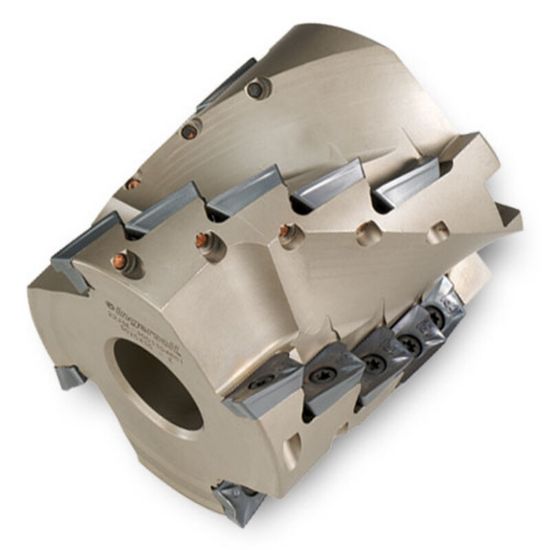

Picture of INGERSOLL 22J3E-25030D3R01 Milling Cutter 90.0°, Corn Cob 2.500 Cylindrical 1.0000 4 Flute 2.26 Max DOC 3.060 OAL

INGERSOLL 22J3E-25030D3R01 Milling Cutter 90.0°, Corn Cob 2.500 Cylindrical 1.0000 4 Flute 2.26 Max DOC 3.060 OAL

ANSI: 22J3E-25030D3R01

ISO: 22J3E-25030D3R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040636
Delivery date: 3-5 days
$1,306.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Side Milling, Long Edge Milling
Insert Application Roughing
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Overall Len 3.0600 77.72MM
Depth Of Cut Max 2.2600
Insert Size Ic 18
Cutter Dia 2.5000 63.50MM - 2-1/2
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
