  • INGERSOLL 22J3E-1502381R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 2 Flute Coolant 1.74 Max DOC 4.580 OAL

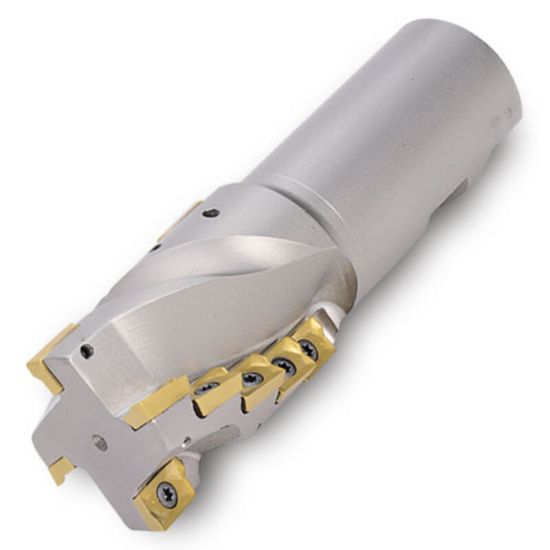

Picture of INGERSOLL 22J3E-1502381R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 2 Flute Coolant 1.74 Max DOC 4.580 OAL

INGERSOLL 22J3E-1502381R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical 1.2500 2 Flute Coolant 1.74 Max DOC 4.580 OAL

ANSI: 22J3E-1502381R01

ISO: 22J3E-1502381R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040630
Delivery date: 3-5 days
$827.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Insert Application Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 1.7400
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 4.5800 116.33MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Insert Size Ic 18
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
