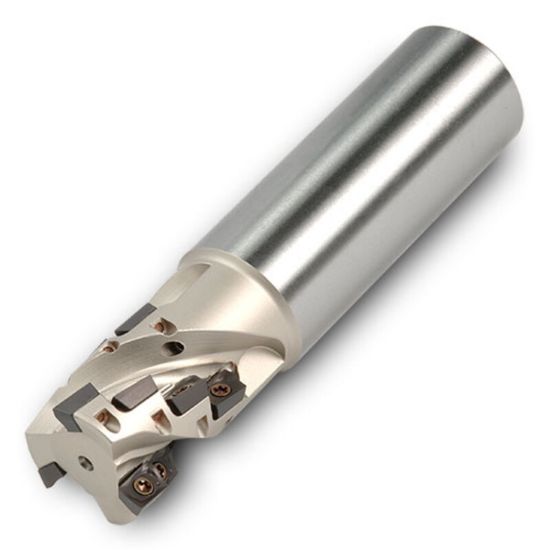

Picture of INGERSOLL 22J3D-0701484R01 Milling Cutter 90.0°, Corn Cob 0.750 Weldon 0.7500 3 Flute Coolant 0.86 Max DOC 3.500 OAL

INGERSOLL 22J3D-0701484R01 Milling Cutter 90.0°, Corn Cob 0.750 Weldon 0.7500 3 Flute Coolant 0.86 Max DOC 3.500 OAL

ANSI: 22J3D-0701484R01

ISO: 22J3D-0701484R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018987
Delivery date: 3-5 days
$801.73
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert Type Positive
Insert Application Roughing
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 6
Depth Of Cut Max 0.8600
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
