  • INGERSOLL 221R100R00 Milling Cutter 90.0° 3.937 Shell Arbor 1.2598 11 Flute Coolant 0.4724 Max DOC 1.968 OAL

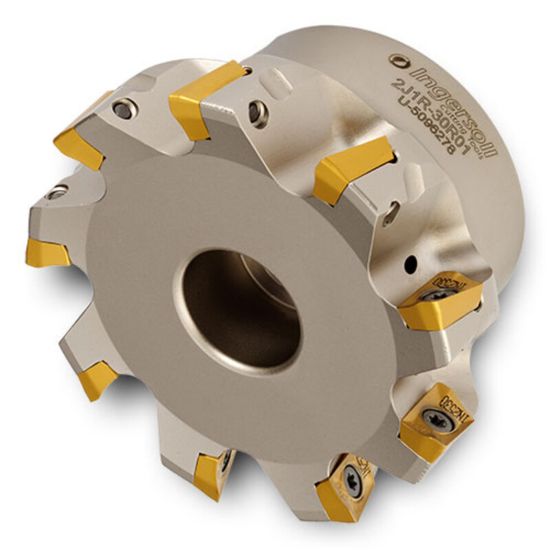

Picture of INGERSOLL 221R100R00 Milling Cutter 90.0° 3.937 Shell Arbor 1.2598 11 Flute Coolant 0.4724 Max DOC 1.968 OAL

INGERSOLL 221R100R00 Milling Cutter 90.0° 3.937 Shell Arbor 1.2598 11 Flute Coolant 0.4724 Max DOC 1.968 OAL

ANSI: 221R100R00

ISO: 221R100R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3074955
Delivery date: 3-5 days
$1,213.33
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Flutes/Inserts 11
Depth Of Cut Max 0.4724
Cut Dia Min 3.9370 100.00MM
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Insert Size Ic 13
Overall Len 1.9685 50.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style BO
Max Ramp Angle 0.80°
Insert Shape/Cutter Pocket Shape Parallelogram
