  • INGERSOLL 1WJ1F-1502281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 4 Flute Coolant 0.22 Max DOC 4.500 OAL

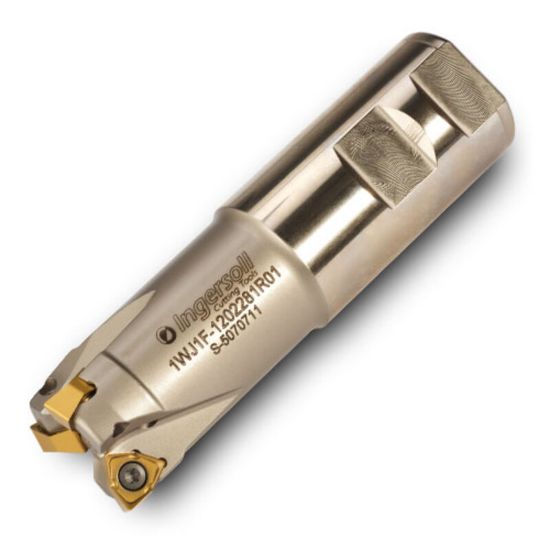

Picture of INGERSOLL 1WJ1F-1502281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 4 Flute Coolant 0.22 Max DOC 4.500 OAL

INGERSOLL 1WJ1F-1502281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 4 Flute Coolant 0.22 Max DOC 4.500 OAL

ANSI: 1WJ1F-1502281R01

ISO: 1WJ1F-1502281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2911305
Delivery date: 3-5 days
$501.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Side Milling, Face Milling
Insert/Tool Tool
Insert Application Semi Finishing
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.2200
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Tool Material Steel
Insert Size Ic 6
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.60°
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
