  • INGERSOLL 1TW8J-0701580R02 Milling Cutter 0.750 Weldon 1.0000 2 Flute Coolant 0.51 Max DOC 7.000 OAL

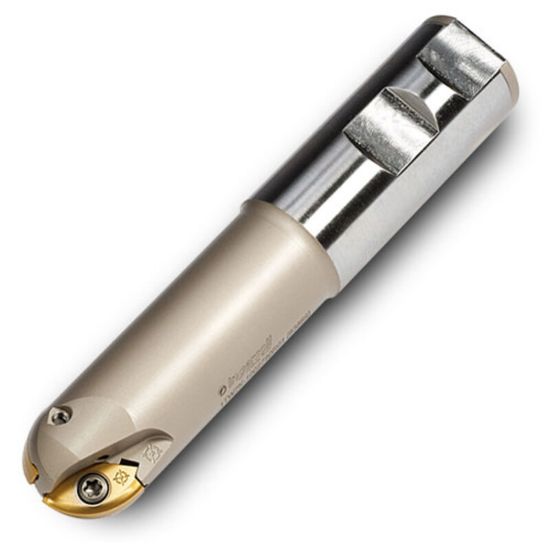

Picture of INGERSOLL 1TW8J-0701580R02 Milling Cutter 0.750 Weldon 1.0000 2 Flute Coolant 0.51 Max DOC 7.000 OAL

INGERSOLL 1TW8J-0701580R02 Milling Cutter 0.750 Weldon 1.0000 2 Flute Coolant 0.51 Max DOC 7.000 OAL

ANSI: 1TW8J-0701580R02

ISO: 1TW8J-0701580R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6166361
Delivery date: 3-5 days
$417.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Copy Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.5100
Cut Dia Min 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Insert Size Ic 19
Overall Len 7.0000 177.80MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style NB
Coolant Thru Yes
