  • INGERSOLL 1TW8J-0701580R01 Milling Cutter 0.750 Weldon 1.0000 2 Flute Coolant 0.51 Max DOC 6.000 OAL

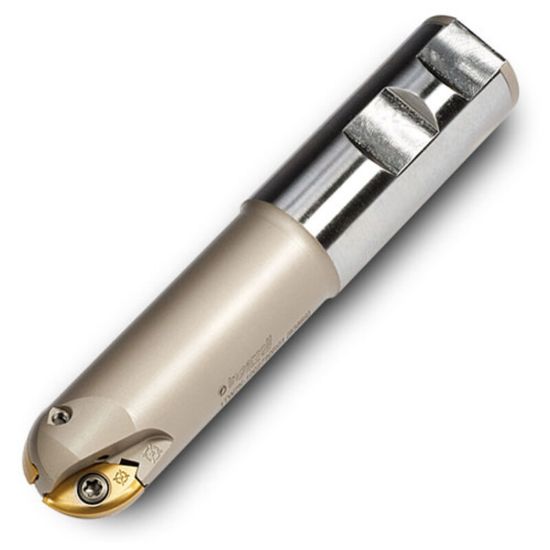

Picture of INGERSOLL 1TW8J-0701580R01 Milling Cutter 0.750 Weldon 1.0000 2 Flute Coolant 0.51 Max DOC 6.000 OAL

INGERSOLL 1TW8J-0701580R01 Milling Cutter 0.750 Weldon 1.0000 2 Flute Coolant 0.51 Max DOC 6.000 OAL

ANSI: 1TW8J-0701580R01

ISO: 1TW8J-0701580R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6166360
Delivery date: 3-5 days
$367.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Profile Milling, Copy Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Tool Material Steel
Cutter Dia 0.7500 19.05MM - 3/4
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.5100
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Insert Size Ic 19
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Ball
Insert Style NB
