  • INGERSOLL 1TW7Q-0601379R01 Milling Cutter 0.625 Weldon 0.6250 2 Flute Coolant 0.47 Max DOC 4.750 OAL

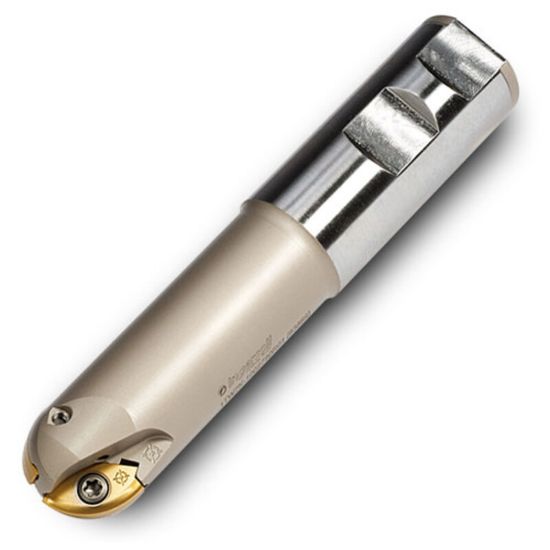

Picture of INGERSOLL 1TW7Q-0601379R01 Milling Cutter 0.625 Weldon 0.6250 2 Flute Coolant 0.47 Max DOC 4.750 OAL

INGERSOLL 1TW7Q-0601379R01 Milling Cutter 0.625 Weldon 0.6250 2 Flute Coolant 0.47 Max DOC 4.750 OAL

ANSI: 1TW7Q-0601379R01

ISO: 1TW7Q-0601379R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6166349
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Copy Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.7500 120.65MM
Cut Dia Min 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Insert Size Ic 16
Machine Side Connection Type Weldon
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.4700
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Coolant Thru Yes
Insert Style NB
