  • INGERSOLL 1TW7K-1002780R02 Milling Cutter 1.000 Weldon 1.0000 2 Flute Coolant 0.68 Max DOC 6.000 OAL

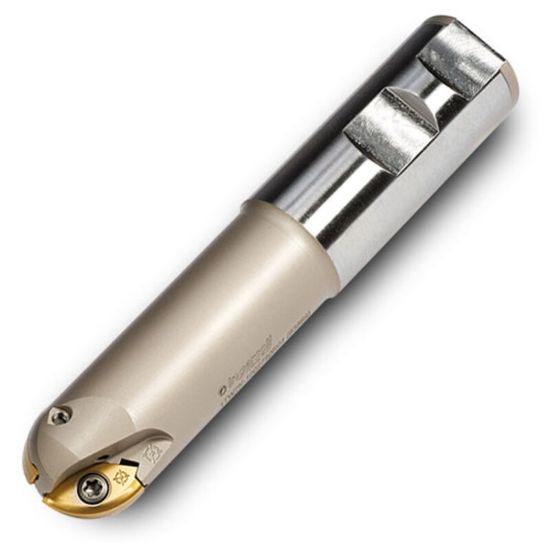

Picture of INGERSOLL 1TW7K-1002780R02 Milling Cutter 1.000 Weldon 1.0000 2 Flute Coolant 0.68 Max DOC 6.000 OAL

INGERSOLL 1TW7K-1002780R02 Milling Cutter 1.000 Weldon 1.0000 2 Flute Coolant 0.68 Max DOC 6.000 OAL

ANSI: 1TW7K-1002780R02

ISO: 1TW7K-1002780R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6166364
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Copy Milling, Profile Milling
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 25
Depth Of Cut Max 0.6800
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style NB
Insert Shape/Cutter Pocket Shape Ball
